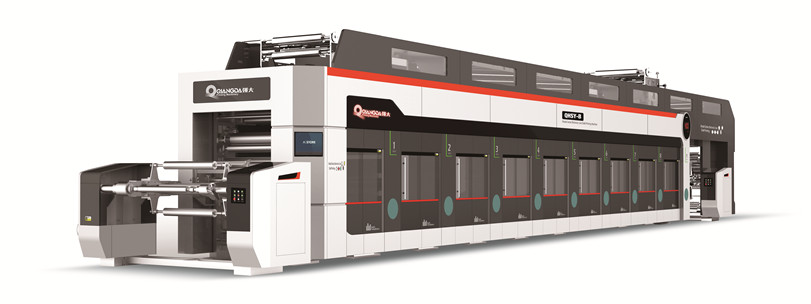

QHSY-B Model Electronic Shaft Water-Based Ink Rotogravure Printing Machine
- Features
- Use
- Technical parameter
- Download
-
Electronic shaft driven, each color unit is driven by one servo motor.
-
Fully enclosed structure, achieve factory workshop odorless pollution.
-
Stand-alone console, touch screen concentrated control.
-
Multiple independent full automatic tension control,dancing roller inspection.
-
Shaft-less printing cylinder loading.
-
Integral ink scraping mechanism
-
Pre-registration function,vertical and horizontal automatic registration control system.
-
Energy-efficient water-based ink drying system
-
Optional heating source:electricity, natural gas, steam,thermal oil.
|
型號(hào) |
Model |
QHSY-B 850/8色 |
QHSY-B 1050/8色 |
QHSY-B 1250/8色 |
|
印刷材料寬度 |
Max. printing material width |
800mm |
1000mm |
1200mm |
|
印刷長(zhǎng)度 |
Printing cylinder length |
380-1000mm |
380-1000mm |
380-1000mm |
|
印刷最高速度 |
Max printing speed |
300m/min |
300m/min |
300m/min |
|
放卷最大直徑 |
Max unwinder diameter |
800mm |
800mm |
800mm |
|
收卷最大直徑 |
Max rewinder diameter |
800mm |
800mm |
800mm |
|
總功率 |
Total power consumption |
390KW |
420KW |
450KW |
|
機(jī)器重量 |
Machine weight |
40噸 |
43噸 |
48噸 |
|
外型尺寸（L*W*H） |
Machine overall size |
24000*4400*4500mm |
24000*4600*4500mm |
24000*4800*4500mm |
